1. Introduction

ASTM A193 Grade B7 stud bolts paired with A194 Grade 2H heavy hex nuts are the default fastener choice for industrial piping flanges worldwide. With a minimum tensile strength of 125 ksi (860 MPa) and proven performance at temperatures up to 537°C (1,000°F), B7/2H has dominated the petrochemical, power generation, and process industries for decades. When procurement engineers specify flange bolting for a Class 150 or 300 system, B7 is almost always the first item on the bill of materials.

But in marine and seawater-exposed environments, this same material combination can fail catastrophically within months. The failure mechanisms are well-documented in NACE MR0175 / ISO 15156, DNV-ST-F101, NORSOK M-601, and ABS shipbuilding rules — yet B7 continues to be specified in seawater flange applications where it has no business being there.

This article explains exactly why B7 fails in seawater, documents each failure mechanism with timeframes and detectability, and provides a tiered material selection guide so you can specify the right fastener for every zone on your vessel.

2. What Exactly Is ASTM A193 Grade B7?

Before analyzing failure modes, it helps to understand the material itself:

The Cr-Mo alloy composition gives B7 its excellent high-temperature strength and fatigue resistance. But that same heat-treated carbon steel matrix is fundamentally vulnerable when exposed to chlorides, moisture, and galvanic couples — exactly the conditions found throughout a vessel's marine piping systems.

3. Five Failure Mechanisms of B7 in Seawater Environments

3.1 Uniform Corrosion (General Rusting)

Seawater contains approximately 35,000 ppm of dissolved salts, primarily sodium chloride (3.5% salinity). Unprotected B7 steel exposed to seawater will rust at an average rate of 0.08–0.15 mm/year depending on temperature, oxygen availability, and flow velocity. On a typical M20 stud bolt with 5 mm thread engagement depth, through-thickness corrosion can reduce load-bearing cross-section by more than 40% within 18–24 months. This is not a gradual degradation — visible surface rust is only the tip of the iceberg. Pitting beneath the rust layer accelerates stress concentration dramatically.

3.2 Galvanic Corrosion with Dissimilar Metals

This is arguably the most common and underappreciated failure mode in shipboard piping. When B7 (carbon steel, active potential approximately −600 mV vs SCE) is electrically coupled to stainless steel flanges (304/316, passive potential +200 to +400 mV vs SCE), a galvanic cell forms. The B7 stud becomes the anode and corrodes preferentially at rates up to 10–100 times faster than standalone uniform corrosion.

The problem is compounded when spiral-wound gaskets with graphite filler or flexible graphite gaskets are used between flange faces — graphite is cathodic to carbon steel and can drive accelerated bolt corrosion even without direct metal-to-metal contact. Many engineers overlook this because they assume the gasket provides electrical isolation. It does not.

3.3 Pitting Corrosion Initiation

Chloride ions (Cl⁻) in seawater aggressively attack passive oxide films on carbon steel surfaces. Once a pit initiates — often at a surface defect, scratch, or coating holiday — the localized chemistry inside the pit becomes autocatalytic: low pH, high Cl⁻ concentration, and depleted oxygen create an environment that accelerates dissolution. For B7 with hardness above HRC 22, these pits become crack nucleation sites under tensile preload.

3.4 Hydrogen-Induced Stress Cracking (HISC) from Cathodic Protection

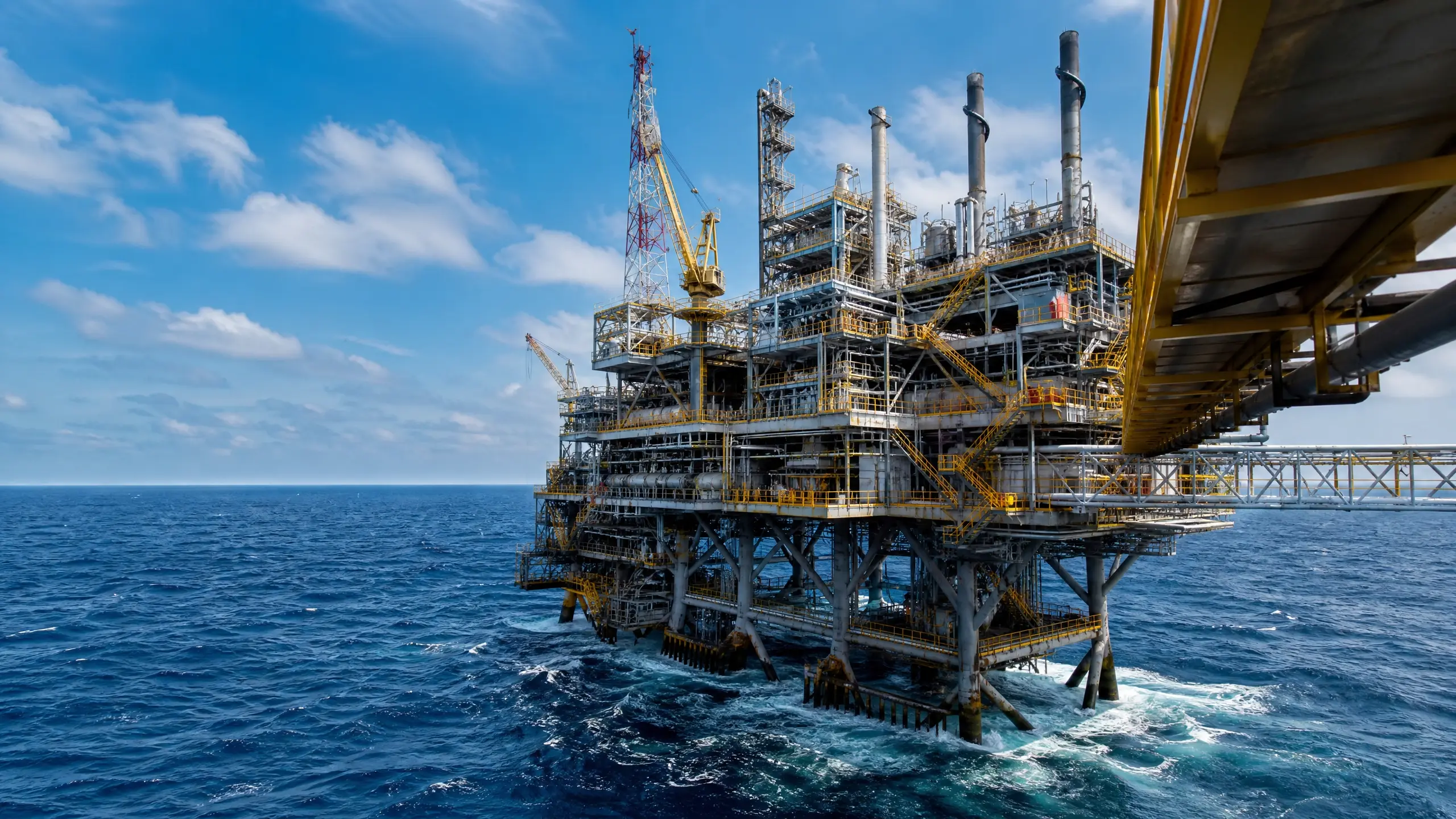

Many offshore platforms and vessels employ impressed current or sacrificial-anode cathodic protection (CP) systems to protect hulls and submerged structures. CP drives the potential of protected surfaces into the hydrogen evolution zone (typically below −850 mV vs Cu/CuSO₄ or −800 mV vs SCE). At these potentials, atomic hydrogen generated by cathodic reduction of water can diffuse into high-strength steel such as B7, causing embrittlement and cracking under sustained tensile load from bolt preload. DNVGL-RP-C203 explicitly addresses HISC risk for fasteners in CP-protected structures, and B7 falls outside the safe hardness window unless special precautions are taken.

3.5 Stress Corrosion Cracking (SCC) in Chloride Environments

The combination of chloride exposure, sustained tensile stress (from flange bolt-up preload), and susceptible microstructure creates conditions favorable for SCC. While pure carbon steels like B7 are generally considered less SCC-susceptible than austenitic stainless steels, the risk increases significantly at elevated temperatures (above 60°C / 140°F), in acidified crevices (under deposits or gasket squeeze-out), and when residual stresses from manufacturing (thread rolling, heat treatment quenching) add to applied preload.

4. Failure Mode Comparison Summary

5. Material Alternatives: What to Use Instead

Tier 1 — Stainless Steel (General Marine Duty)

B8/B8M is the most widely accepted alternative for seawater flange service. The trade-off is lower strength compared to B7 (75 ksi vs 125 ksi), but the elimination of rust-related failures usually justifies this reduction for most Class 150–600 applications.

Tier 2 — Duplex & Super-Duplex (Offshore / High-Chloride Service)

*PREN (Pitting Resistance Equivalent Number) = %Cr + 3.3×%Mo + 16×%N — higher value means better pitting resistance. For reference, 316L has PREN ≈ 25; B7 is not rated as it has no passive film.

Duplex alloys offer near-B7 strength levels with excellent chloride resistance. The cost premium is significant (typically 3–5× B7 pricing), but for critical safety-related joints — ballast water treatment system (BWTS) flanges, fire main headers, subsea manifolds — the lifecycle cost advantage over repeated replacement of failed B7 studs is clear.

Tier 3 — Nickel Alloys (Extreme Conditions)

Reserved for specialized applications: chemical tanker cargo systems, desalination plants, LNG carrier process piping, and any environment combining chlorides with acidic or sour (H₂S-containing) service.

Tier 4 — Coated B7 (Cost-Effective Intermediate Solution)

For situations where full material upgrade is not economically justified or technically required, barrier coatings on B7 substrate can extend service life meaningfully if applied correctly:

** Per ASTM B117 salt spray test standard.
*** PTFE performance depends heavily on coating quality, thickness (≥25 μm recommended for marine service), and absence of holidays. SINOFASTENER supplies PTFE-coated bolts with controlled coating thickness and dielectric testing per batch.

6. Decision Matrix: Which Fastener for Your Application?

7. Conclusion

ASTM A193 B7 remains an excellent fastener material — in the right environment. Its failure in marine flange applications is not a deficiency of the material itself, but rather a mismatch between its metallurgical properties and the operating conditions. The five failure modes outlined here (uniform corrosion, galvanic corrosion, pitting, HISC, and SCC) are predictable, preventable, and documented in every major classification society rulebook and industry standard.

The path forward is straightforward: match the fastener material to the environment. For dry engine room locations, B7/2H remains perfectly appropriate. For anything touched by seawater, specify B8M, duplex, or coated alternatives. And when in doubt, consult the applicable DNV, ABS, BV, or LR rules for your specific application zone — they have all published detailed fastener selection guidance for precisely these scenarios.
