Understanding Ship Classification Society Requirements for Fasteners: ABS, DNV, and Lloyd's Register Standards

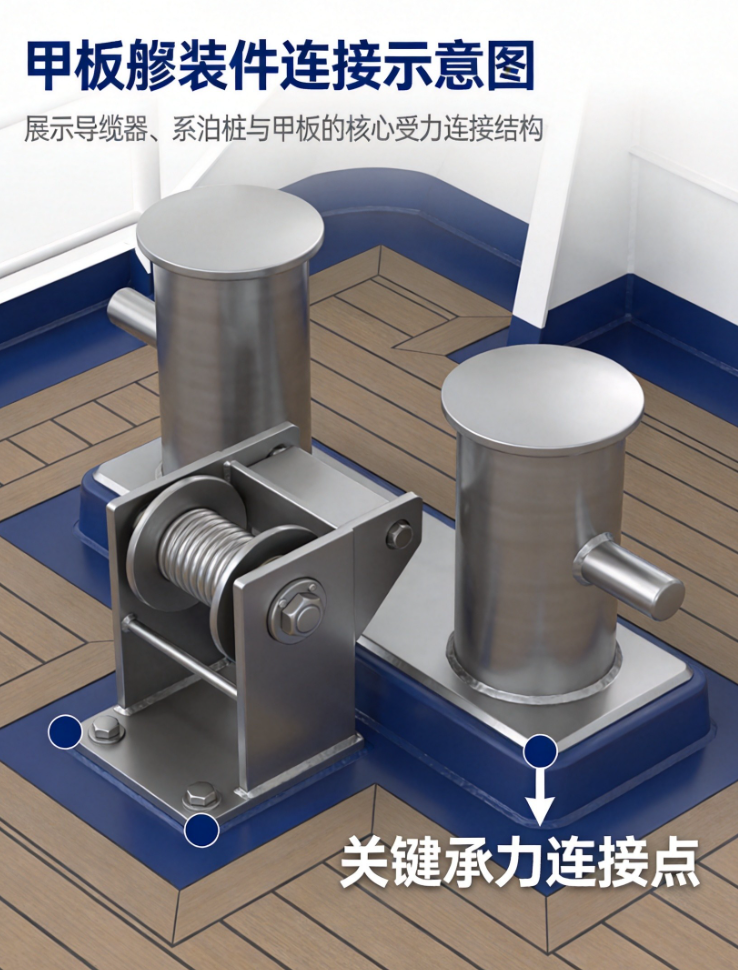

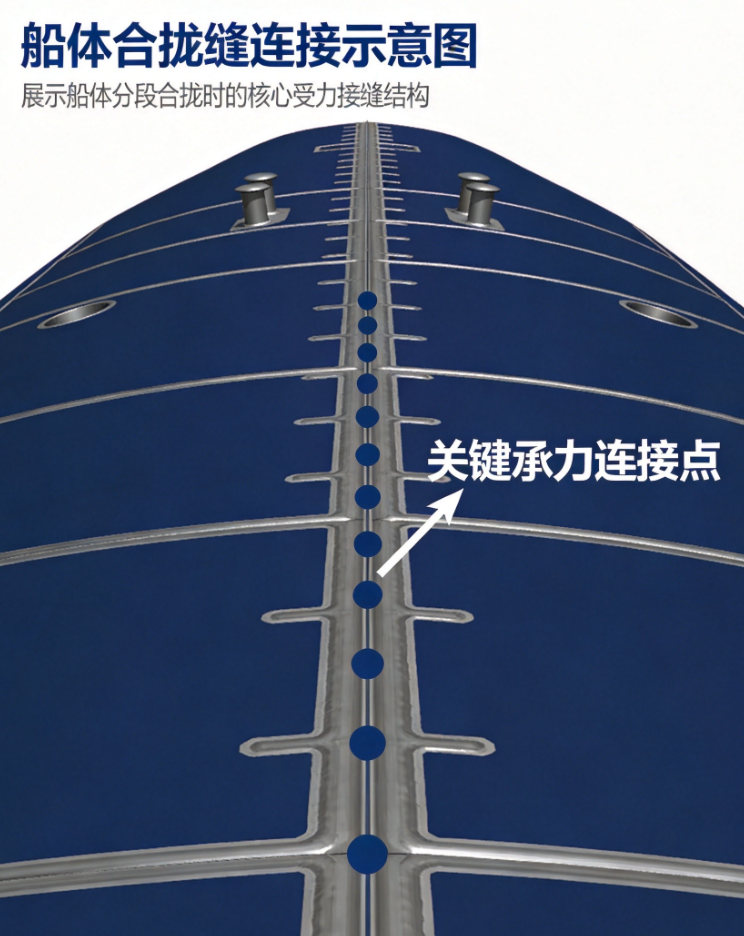

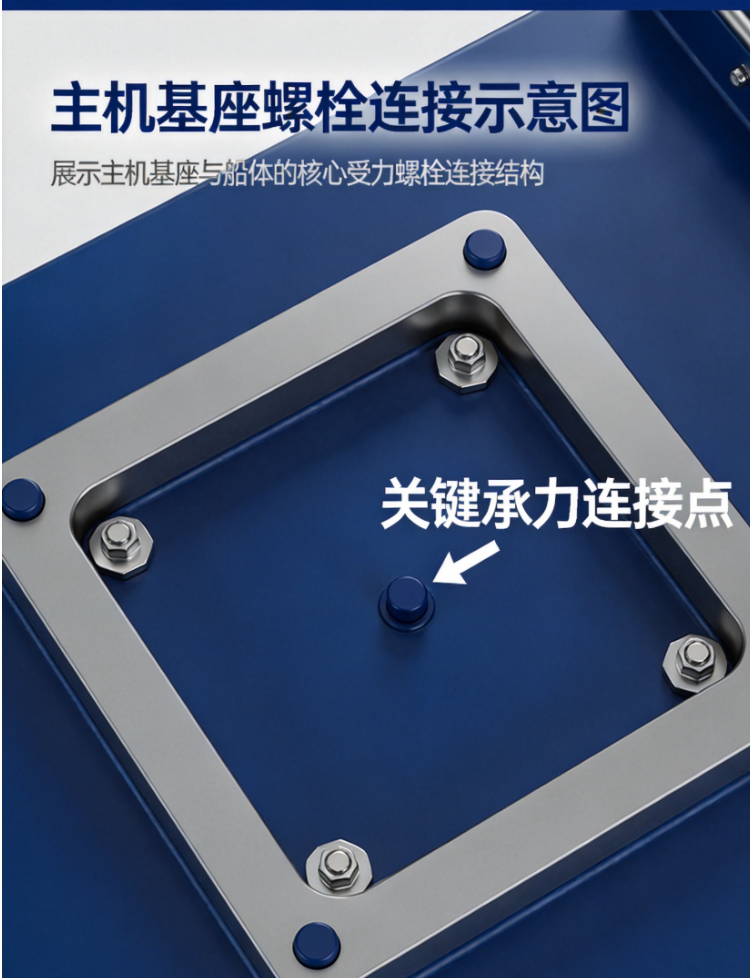

Every bolted joint aboard a vessel carries a weight far beyond its physical mass. Fasteners anchor propulsion systems, secure deck fittings, and connect hull sections — and their selection is governed by one of the most consequential regulatory frameworks in global shipping: ship classification society rules.
Ship classification societies verify that vessels meet safety, structural integrity, and environmental standards throughout their operational life. Three societies dominate the global fleet by tonnage: ABS (American Bureau of Shipping), DNV, and Lloyd's Register (LR) . For shipyards and marine engineers, understanding their fastener requirements is essential to avoiding costly non-conformances at classification surveys.
1. Why Marine Fasteners Face Unique Challenges
Fasteners at sea must withstand conditions that would quickly destroy standard hardware onshore:
- Saltwater corrosion — chloride ions attack unprotected steel
- Cyclic hull flexing — loading that fatigues underworked bolts
- Thermal extremes — from tropical engine rooms to Arctic water
- Vibration — from propellers and main engines
A fastener adequate for a bridge or factory will likely fail within months at sea. Classification society rules exist to define exactly what "adequate for maritime service" means.
2. ABS: ASTM Standards + EN 10204 3.1 MTRs
ABS Rules for Building and Classing Steel Ships delegates fastener material specifications to ASTM while imposing its own traceability requirements.
| Standard | Grade | Key Properties |
|---|---|---|
| ASTM A193/A193M | B7 | Min. tensile 860 MPa, yield 725 MPa; Cr-Mo alloy, QT |
| ASTM A193/A193M | B7M | Same as B7, hardness capped at HRC 25–35; for flanges |
| ASTM A320/A320M | L7 | Same chemistry as B7; Charpy impact tested at -46°C, 27 J min. |
| ASTM F593 | Group 2 | Type 316/316L; preferred for marine — 2–3% Mo resists pitting |
✅ Mandatory: EN 10204 Type 3.1 Mill Test Reports (MTRs) with every batch — chemical composition, mechanical properties, heat treatment, and heat/batch number traceable back to the mill.
3. DNV: Low-Temperature Toughness + Mooring Type Approval
DNV-RU-SHIP Pt.3 Ch.11 governs mooring fittings and hull attachments. SOLAS II-1/3-8 mandates that these connections withstand maximum forces encountered in normal service.
DNV GL-ST-0378 (Shipboard Equipment — Fasteners) adds DNV-specific requirements:
| Requirement | Standard |
|---|---|
| Impact toughness | Charpy V-notch 27 J min. at -40°C |
| Offshore vessels | Down to -101°C for specialized applications |
| Deck hardware | Hot-dip galvanized for saltwater exposure |
| Accepted materials | ASTM A193 B7M + ISO 3506-1 stainless grades |
⚠️ NYTEK / NS 9415: Mooring bolts require DNV Type Approval (TA) per NS 9415. No TA = no compliance for Norwegian-flagged or NYTEK-regulated vessels.
4. Lloyd's Register: ISO-Centric Approach + Structural TA
Lloyd's Register aligns closely with ISO standards while accepting ASTM and EN specs under its Recognized Standard framework.
ISO 3506-1:2020 — Key grades:
| Grade | Material | Tensile | Application |
|---|---|---|---|
| A2-70 | 304 equiv. | 700 MPa | General interior only |
| A4-70 | 316 equiv. | 700 MPa | Marine atmosphere — preferred |
| A4-80 | 316 enhanced | 800 MPa | High-risk chloride environments |
🌊 A4 grades contain molybdenum; PREN > 25 vs ~18–20 for A2 — a significant advantage in seawater exposure. LR mandates A4-70 minimum for marine atmosphere.
LR mandates: Type Approval for critical hull and propulsion fasteners; heat code marking on every fastener or batch — unmarked fasteners rejected at survey.
5. Quick Comparison: ABS vs DNV vs Lloyd's Register
| Requirement | ABS | DNV | Lloyd's Register |
|---|---|---|---|
| Primary fastener standard | ASTM A193/A320 | ASTM A193 + DNV GL-ST-0378 | ISO 3506 + recognized ASTM/EN |
| Marine stainless grade | ASTM F593 Group 2 (316/316L) | ISO 3506 A4-70/80 | ISO 3506 A4-70 minimum |
| Low-temperature grade | A320 L7 (-46°C) | A320 L7 + Charpy 27 J at -40°C | A320 L7 + impact test |
| Material certification | EN 10204 3.1 MTR | 3.1 MTR + DNV TA | 3.1 MTR + LR TA |
| Heat code marking | Required | Required | Required |
| Mooring hardware | ABS type test | DNV NS 9415 + NYTEK | LR type test |
| Deck galvanization | Hot-dip galvanized | Hot-dip galvanized | Hot-dip galvanized |
Key patterns:
- ASTM A193/A320 and ISO 3506 form the technical backbone across all three
- EN 10204 3.1 MTRs are universally mandatory — no exceptions
- Type Approval is non-negotiable for mooring and critical structural fasteners
- Hot-dip galvanization is universal for deck hardware
- DNV imposes the most granular supplementary requirements (DNV GL-ST-0378)
6. Five-Step Sourcing Checklist
Step 1 — Identify applicable society(ies)
Dual-class vessels (e.g., ABS+DNV or LR+CCS) require compliance with the more stringent requirements of both.
Dual-class vessels (e.g., ABS+DNV or LR+CCS) require compliance with the more stringent requirements of both.
Step 2 — Match grade to service temperature
| Service | Grade |
|---|---|
| Ambient seawater / hull | A4-70 (316) minimum |
| Cryogenic cargo tanks | A320 L7 |
| High-pressure steam piping | A193 B7 |
| Polar / -46°C to -101°C | A320 L7 + DNV GL-ST-0378 Charpy |
Step 3 — Verify MTRs: Insist on EN 10204 3.1 MTRs. Reject unmarked stock.
Step 4 — Check Type Approval: No valid TA = no compliance for critical fasteners.
Step 5 — Consider dual certification: ASTM A193 B7 + ISO 3506 A4-80 dual-certified fasteners cover the broadest range of classification requirements.
